Gantry dynamic crossbeam structure
HSK E40 30000rpm/24000rpm Electrical spindle
Umbrella servo tool magazine BT40-20T
| Machine model | A-320 |
|---|---|
| Travel | |
| X-axis travel | 400mm |
| Y-axis travel | 500/600mm |
| Z-axis travel | 380mm |
| A-axis travel rotation angle | 110°~-110° |
| C-axis travel rotation angle | 360° |

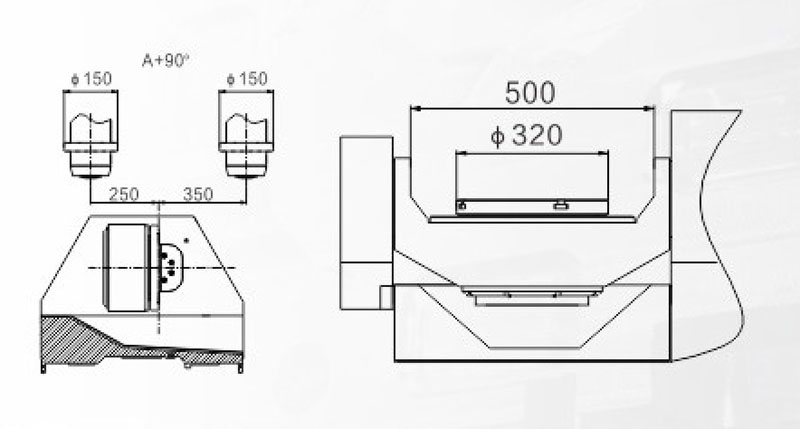

| Spindle end face distance from rotary table (axis AO°) | 120-470mm |
| Spinde face distance from A-axis rotaton center (A-axis 90°) | 120-470mm |
| Distance between spindie center and A-axis end face (A-axis 90°) | 250/400mm |
| Processing range | Φ400mm |
| Rotary table (dual direct drive) | |
| Mounting flange diameter | Φ320mm |
| Center hole diameter | Φ65mm |
| Maximum load weight | 40kg |
| Spindle | |
| Diameter | Φ120/Φ140mm |
| Maximum speed | 30000/24000rpm |
| Output Power | 8.5/11kw |
| Taper | HSKE40 |
| Feed axis | |
| X/Y/Z axis power | 2/2/3kw |
| A-axis rated torque/maximum torque | 259*460N.m |
| C-axis rated torque/maximum torque | 122/223N.m |
| Rapid feed | |
| X/Y/Z axis | 30m/min |
| A轴速度 A-axis |
5400mm/min |
| C-axis | 7200mm/min |
| Cutting speed | |
| X/Y/Z axis | 10mm/min |
| A-axis | 4000mm/min |
| C-axis | 6000mm/min |
| Linear guides and ballscrew | |
| X/Y/Z axis linear guides | 35/35/35mm |
| X/Y/Z axis ballscrew | 2812 |
| Tool magazine | |
| Tool storage capacity | 20T |
| Tool changer | arm type |
| Overall | |
| Machine dimensions (L x WxH) | 3000x2600x2900mm |
The product is mainly applied in various industries such as industrial equipment, aviation industry, automotive industry, medical equipment, and mold industry, and has a wide range of applications.
